ISO Single Claw Clamp

DESCRIPTION：The main body of the ISO Single Claw Clamp is made of aluminum, and the bolt is made of stainless steel, which is convenient to use....

  • DATE：2023-05-13 15:14:16
  • VIEW：183
Detail MESSAGE

PRODUCTS

/ Products Classification Click to expand+

Vacuum Valve

Vacuum Bellow

Vacuum Flange

Vacuum Clamp

Centering Ring

Vacuum Components

Detail

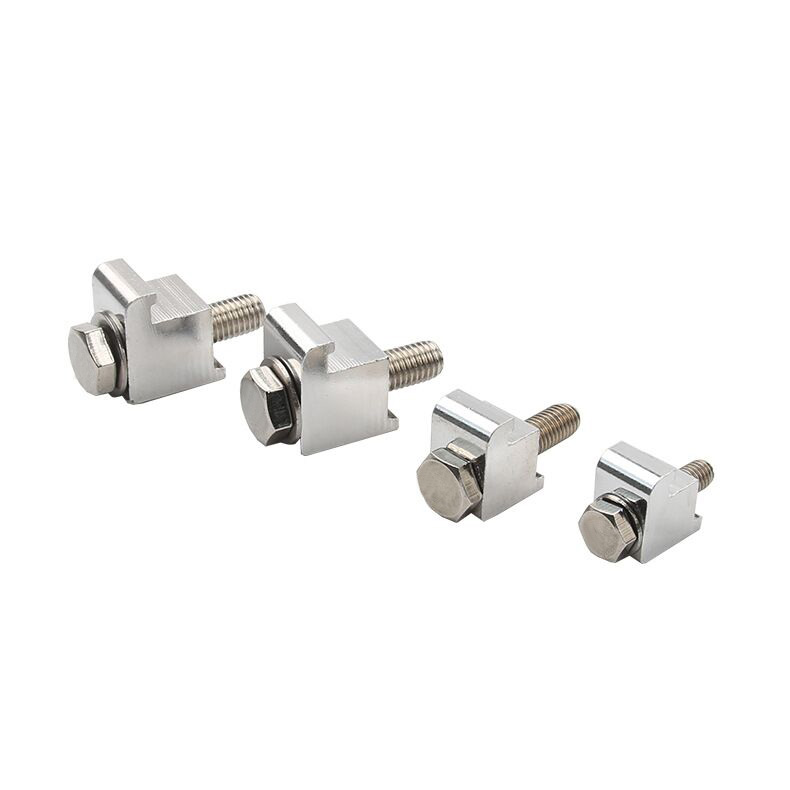

ISO Single Claw Clamp



Body MaterialAluminum
Hardware (Bolts and Washers)304 Stainless Steel

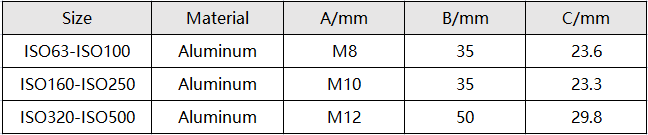

SpecificationM8/M10/M12
Vacuum rated1×10-8 Torr



ISO Single Wall clamps require the use of more than one clamp per flange connection.

The number of clamps used and screw diameter vary depending on the flange diameter.

Aluminum version, Suitable for use with elastomer seals.

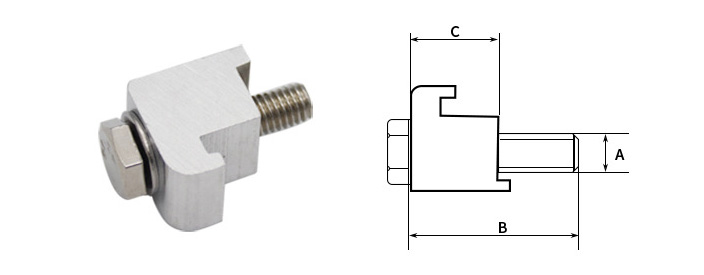

ISO single wall clamp.jpg
