ISO Double Wall Clamp

DESCRIPTION：The ISO Double Wall Clamp is made of aluminum, which has good strength and light weight, and the bolt is made of stainless steel....

  • DATE：2023-05-17 17:00:45
  • VIEW：137
Detail MESSAGE

PRODUCTS

/ Products Classification Click to expand+

Vacuum Valve

Vacuum Bellow

Vacuum Flange

Vacuum Clamp

Centering Ring

Vacuum Components

Detail

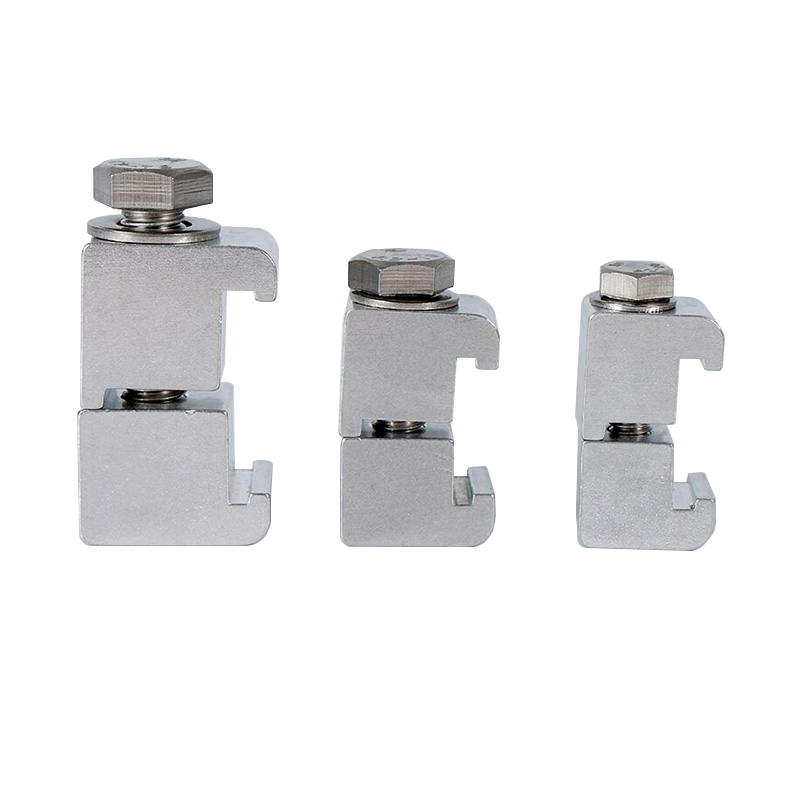

ISO Double Wall Clamp


Body: Aluminum

Hardware (bolts and washers): Stainless Steel

Product specification: M8/ M10/ M12


  • ISO63-ISO100 recommends four M8 ISO Double Wall Clamp

  • ISO160-ISO250 recommends six M10 ISO Double Wall Clamp

  • AboveISO250,  it is recommended to use eight M12 ISO Double Wall Clamp

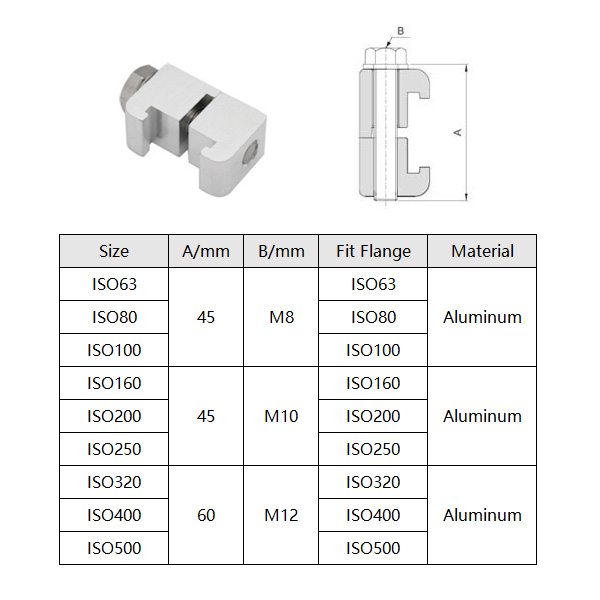

ISO Double wall clamp drawing.jpg

ISO double claw clamp.jpg
