KF Toggle Clamp With Lanyard

KF Toggle Clamps are used to connect vacuum plumbing and process systems in combination with vacuum pumps or vacuum components.

Product Material: Aluminum

Vacuum Rating : High

Temperature Range : 0° to 300° F

Features:

light weight
Has good corrosion resistance
Quick release
A lock pin inserted to prevent accidental release of the toggle lever
Easy for quick installation and uninstall

The Toggle Spring Loaded Clamps are available in the following sizes: KF 10, KF 16, KF 25, KF 40, KF 50.

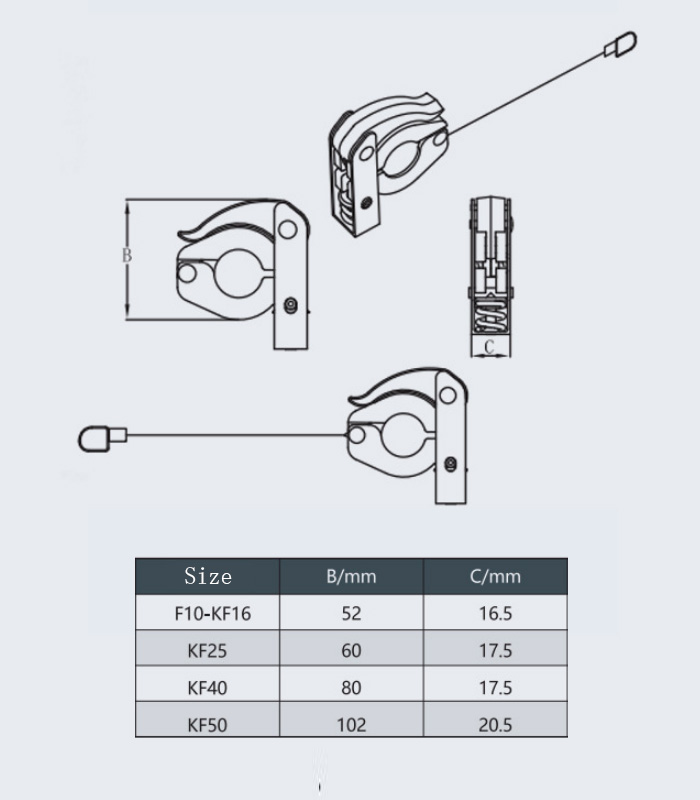

KF toggle clamp drawing.jpg

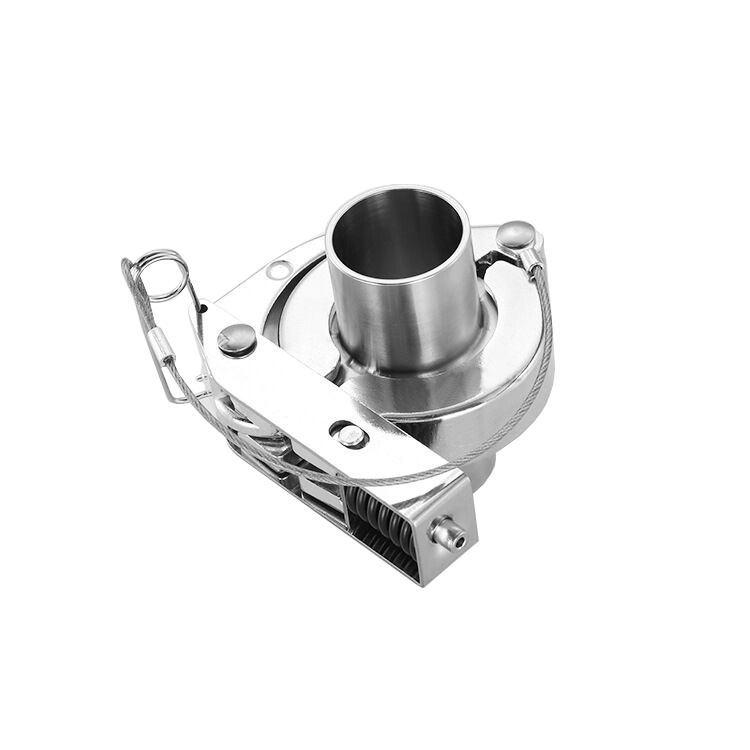

kf25 toggle vacuum clamp.jpg

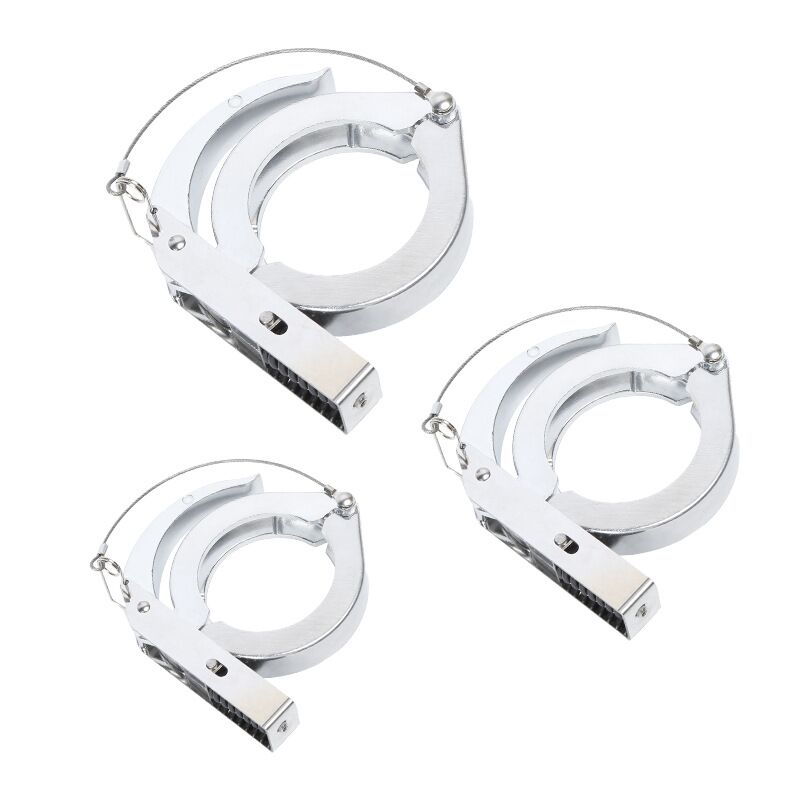

ISO KF vacuum flange toggle clamp.jpg
