KF Centering Ring with Outer Ring & O-Ring

DESCRIPTION：KF Centering Ring with Outer Ring & O-Ring is a type of vacuum seal used in high vacuum systems. It is designed to provide a tight and reliable seal between two KF flanges....

DATE：2023-05-24 16:37:07
VIEW：165

Detail MESSAGE

PRODUCTS

/ Products Classification Click to expand+

Detail

KF Centering Ring with Outer Ring & O-Ring

Outer Ring: Aluminum

Inner Ring: SS304, SS316
O-Ring: FKM

Product Specification: KF10, KF16, KF25, KF40, KF50

The center ring is typically made of stainless steel, which is circular. It is placed between two KF Flanges to create a vacuum-tight seal. The center ring has a grooved channel around its outer circumference that accepts an O-ring, which provides an additional sealing element.

The outer ring, which is also circular, fits over the center ring and is secured in place by bolts or clamps. The outer ring ensures that the O-ring is properly seated in the grooved channel and helps to distribute the clamping force evenly across the flange.

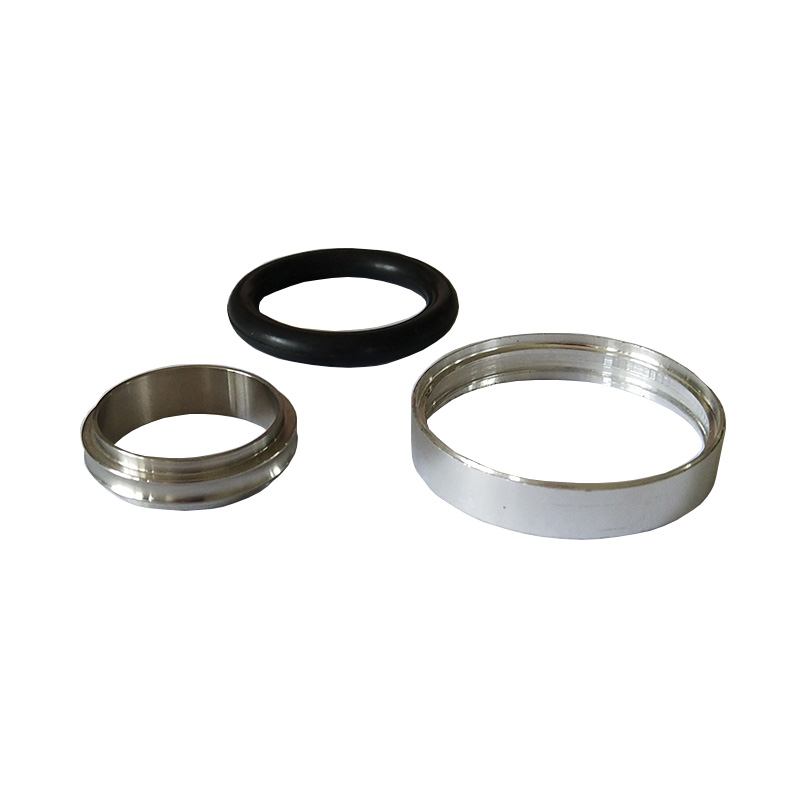

KF Center Ring with Outer Ring&Oring.jpg
